SOLUTION

FEATURES:

This model is based on the heating roller method, especially for granule and powder products. This machine is controlled by the servo motor so that the bag length ranging from 40 to 210mm can be adjusted. For improving the quality of package, the print registration is possible by photocell control device. In addition, the structure of the machine is simple, low price and good quality.

APPLICATION:

Especially applicable to packaging of all kinds of powder,granule etc.

SPECIFICATIONS:

Filling Product	Powder & Granule
Pouch Pattern	3-side seal & 4-side seal
Pouch Height Range	2divisions 120-210mm 3divisions 80-150mm 4divisions 60-110mm 6divisions 40-75mm According to the width of horizontal sealing pouch height range is different.
Pouch Width	25-100mm
Packaging Capacity	40-120 pouches per minute (depending on pouch height,film composition,product property,etc)
Filling Capacity	1-100ml (depending on product property and filling device to be used)
Applicable Film Width	50-200mm
Maximum Film Roll Dia	￠400mm
Power Consumption	3-phase 380V 4.8kw
Air Consumption
Machine Dimensions	1100mm(L)×920mm(W)×1900mm(H)
Machine Weight	Approx.700kg

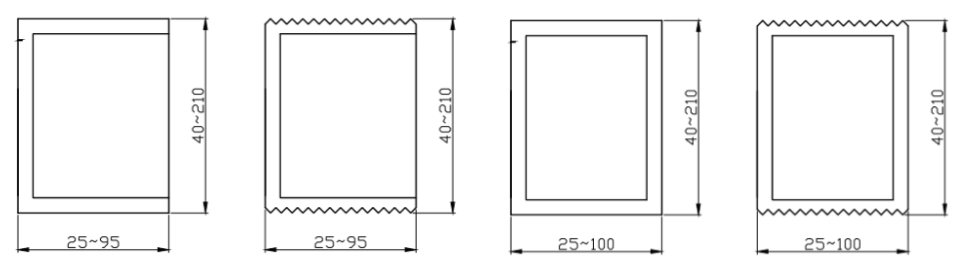

PACKAGING STYLE:

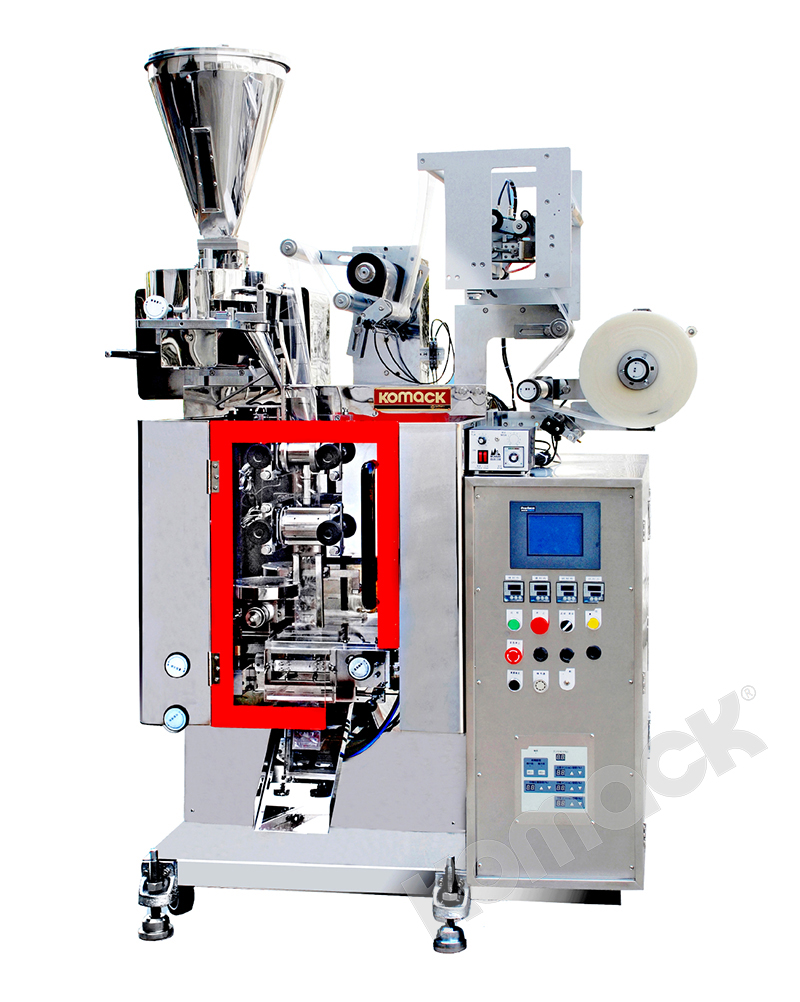

TYP-602·2/S AUTOMATIC GRANULE & POWDER FILLING & PACKAGING MACHINE
